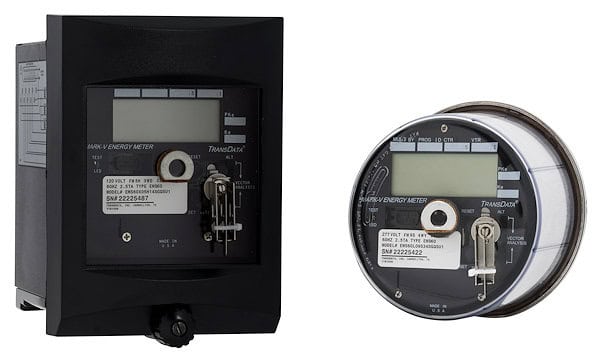

Mark-V Energy Meter

More Than Just a Meter… the MARK-V Energy Meter is the Most Complete and Comprehensive Smart Grid Energy Meter for:
Verizon 4G LTE wireless for register billing data and real-time multi-port SCADA DNP3 transmission (contact factory for ordering information)
Distribution Substation, Generation and Transmission Grid Metering
Commercial and Industrial Revenue Billing
Wireless AMR with Digital Cellular Under-Glass
DNP 3.0 and Modbus SCADA Metering
Ethernet Connectivity
Manufactured and Tested in the United States of America
Smart Metering is our Business:
Utilized by more than 400 leading global electric utilities and energy producers for a variety of Advanced Metering Infrastructure (AMI) applications; the versatile MARK-V Energy Meter provides users with an innovative and cost-effective smart grid revenue metering solution to more effectively measure, manage and communicate energy flow data.
The MARK-V Energy Meter offers best-of-class features and functionality including: integrated two-way AMR data telemetry; real-time DNP 3.0 and Modbus SCADA communications; multi-port Ethernet connectivity; load profile recording and power quality monitoring system.
Renowned for its superior accuracy and reliability performance, the MARK-V is independent test laboratory certified to the highest levels of revenue meter accreditation.
Digital Cellular Under-Glass Wireless AMR – We Invented It:
TransData pioneered the world’s first electricity meter with fully integrated digital cellular communications and has deployments at more than 70 leading utilities. Ideally suited for installation on 100kW and larger accounts; the MARK-V Meter can be equipped with our integrated StarBurst digital cellular AMR broadband module with selectable IP addressable 3G packet-data and circuit-switched data telemetry modes.

Key Features:

4-Quadrant Bidirectional Energy Meter
±0.06% Load Range Accuracy
ANSI C12.1, C12.20 Certified, Measurement Canada Approved Revenue Meter
Power Quality Monitoring System with Event Recorder
Multi-Processor Real-time Operating System, No Data Buffering Delays
Power Quality Monitoring with Event Recorder and Event Notification
Real-Time Transformer & Line Loss Compensation with Test Mode
Socket, Switchboard and A-Base Mounting Configurations

Real-Time SCADA Communications:

DNP 3.0 and Modbus (TCP/IP and RTU) SCADA Protocols
Ethernet, RS232/RS485 Serial, Digital Cellular Broadband Telemetry Options
Supports Real-time Data Requirements of Load Control and Demand Response Programs
Available 1mA or 4-20mA Analog Outputs for Legacy RTU’s

Billing Register/Interval Data Recorder:

Ethernet, Digital Cellular, Telephone Modem, RS232/RS485 Serial, Optical Port, Telemetry
4 or 8 Channel Interval Data Recorder, Programmable 1-60 Minutes Intervals
Maintenance Free LiRAM Memory – NO Batteries to Replace
Programmable Usage, Demand and Time-of-Use (TOU) Registers

Patented Technologies:

Patented Digital True RMS Measuring Technology
Patented Under-Glass Antenna Technologies Simplify Installation
Intelligent, Smart Grid Energy Metering Technologies for Utilities and Industry Spanning Six Decades
